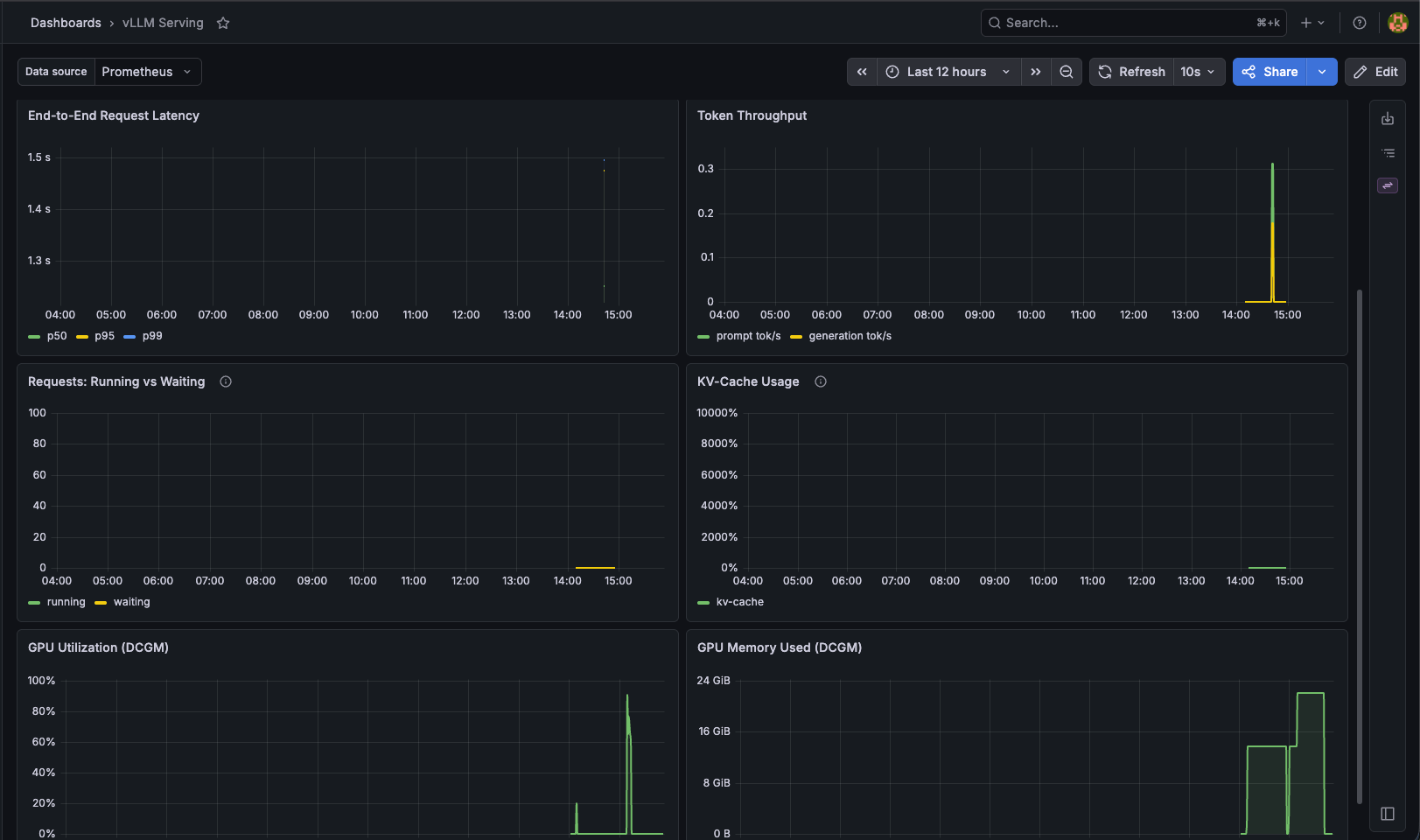

Operating and debugging the serving/raw-vllm OpenAI-compatible endpoint: scale-to-zero, GPU-capacity fallback, and the GitOps gotchas hit standing it up. vLLM Serving dashboard showing latency, token throughput, running versus waiting requests, KV-cache usage, and GPU utilization and memory The vLLM Serving dashboard: end-to-end latency, token throughput, running vs waiting requests, KV-cache usage, and DCGM GPU utilization and memory.

​
Operating it (default-off, scale-to-zero)

The Deployment ships replicas: 0: no GPU node, $0 idle. Bring it up for a session, tear it down after:
make vllm-up      # scale to 1 → GPU node provisions → image pull → model load
make vllm-smoke   # authenticated OpenAI chat request, asserts a completion
make vllm-down    # scale to 0 → GPU node drains and releases
make vllm-up blocks on kubectl rollout status (up to 18m: a cold node is provision + ~8GB image pull + model download + CUDA-graph capture). The model-cache PVC keeps the weights across restarts so a warm node skips the HuggingFace re-pull.

​
1. make vllm-up is reverted to 0 by Argo CD

Symptom: you scale to 1, the pod starts (or even loads the model), then the Deployment drops back to 0/0 and the pod is deleted within a minute or two. Cause: the App pins replicas: 0 in git with ignoreDifferences on /spec/replicas. ignoreDifferences only suppresses the diff display; it does not exclude the field from the sync patch. So the next auto-sync reapplies replicas: 0 and undoes the manual scale. Fix: add RespectIgnoreDifferences=true to the App’s syncOptions (alongside ignoreDifferences). That makes sync skip the ignored field, so a manual kubectl scale sticks, the standard pattern for an externally-scaled (HPA-style) Deployment.
syncPolicy:
  syncOptions: [RespectIgnoreDifferences=true]
ignoreDifferences:
  - group: apps
    kind: Deployment
    name: raw-vllm
    jsonPointers: [/spec/replicas]

​
2. GPU pod stuck Pending: “GCE out of resources”

Symptom: after make vllm-up the pod is Pending; events show FailedScaleUp ... GCE out of resources and the autoscaler goes into backoff. Cause: the requested GPU has no stock in the zone right now. L4 (g2) in us-central1-a is frequently exhausted, on both spot and on-demand. Fix: the Deployment is GPU-type-agnostic: it requests nvidia.com/gpu: 1 and tolerates the GPU taint but pins no cloud.google.com/gke-accelerator, so the autoscaler falls back to whatever GPU pool has capacity. Keep a second pool for this: Set gpu_node_pool_name = "gpu-t4", gpu_machine_type = "n1-standard-4", and gpu_accelerator_type = "nvidia-tesla-t4" in infra/gke/terraform/terraform.tfvars, then run make tf-apply. Both pools are scale-to-zero ($0 idle). The 0.5B model fits either (L4 23GB / T4 16GB). Check the live capacity / quota before assuming it’s gone for good:
gcloud compute regions describe us-central1 --format=json \
  | jq '.quotas[] | select(.metric|test("NVIDIA_(L4|T4)_GPUS|GPUS_ALL_REGIONS"))'

​
3. Rollout deadlocks on a template change

Symptom: editing the Deployment (e.g. args) while it’s scaled up leaves a new pod Pending forever with FailedScaleUp, and the old pod never terminates. Cause: the project’s GPUS_ALL_REGIONS quota is 1: only one GPU node cluster-wide. A RollingUpdate surge pod needs a second GPU before the old one frees, which the quota forbids, so the roll never completes. Fix: the Deployment uses strategy: Recreate: old pod terminates before the new one schedules. Correct for single-GPU serving; the brief downtime is unavoidable with one GPU.

​
4. Auth: /v1/* needs the key, /metrics does not

vLLM enforces VLLM_API_KEY (ESO-provisioned from GCP Secret Manager) on /v1/* but serves /health and /metrics unauthenticated, so the Prometheus ServiceMonitor scrapes without credentials. A 401 on a chat request means the vllm-api-key Secret is missing or stale:
kubectl -n serving get externalsecret vllm-api-key   # want STATUS=SecretSynced READY=True
If it’s SecretSyncError, the backing Secret Manager value doesn’t exist yet; create it (see serving/raw-vllm/README.md).

​
Diagnose

kubectl -n serving get pods -o wide
kubectl -n serving logs deploy/raw-vllm --tail=50          # model load / OOM / tokenizer errors
kubectl -n serving get events --sort-by=.lastTimestamp | tail
# Prometheus target + a live metric (port-forward the prometheus svc):
curl -s 'http://localhost:9090/api/v1/query?query=vllm:num_requests_running'
