Serve a model from a digest-pinned oci:// modelcar on KServe: the cloud-agnostic model-delivery default for big models. Same Qwen2.5-0.5B / vLLM v0.23.0 engine as qwen-cpu (runbook kserve.md), but on a real GPU with weights baked into an OCI image instead of a pre-staged PVC. Manifest: serving/kserve/inferenceservice-modelcar.yaml. Modelcar is enabled cluster-wide via platform/kserve/values.yaml (kserve.storage.enableModelcar: true).

​
0. How modelcar works (so the steps make sense)

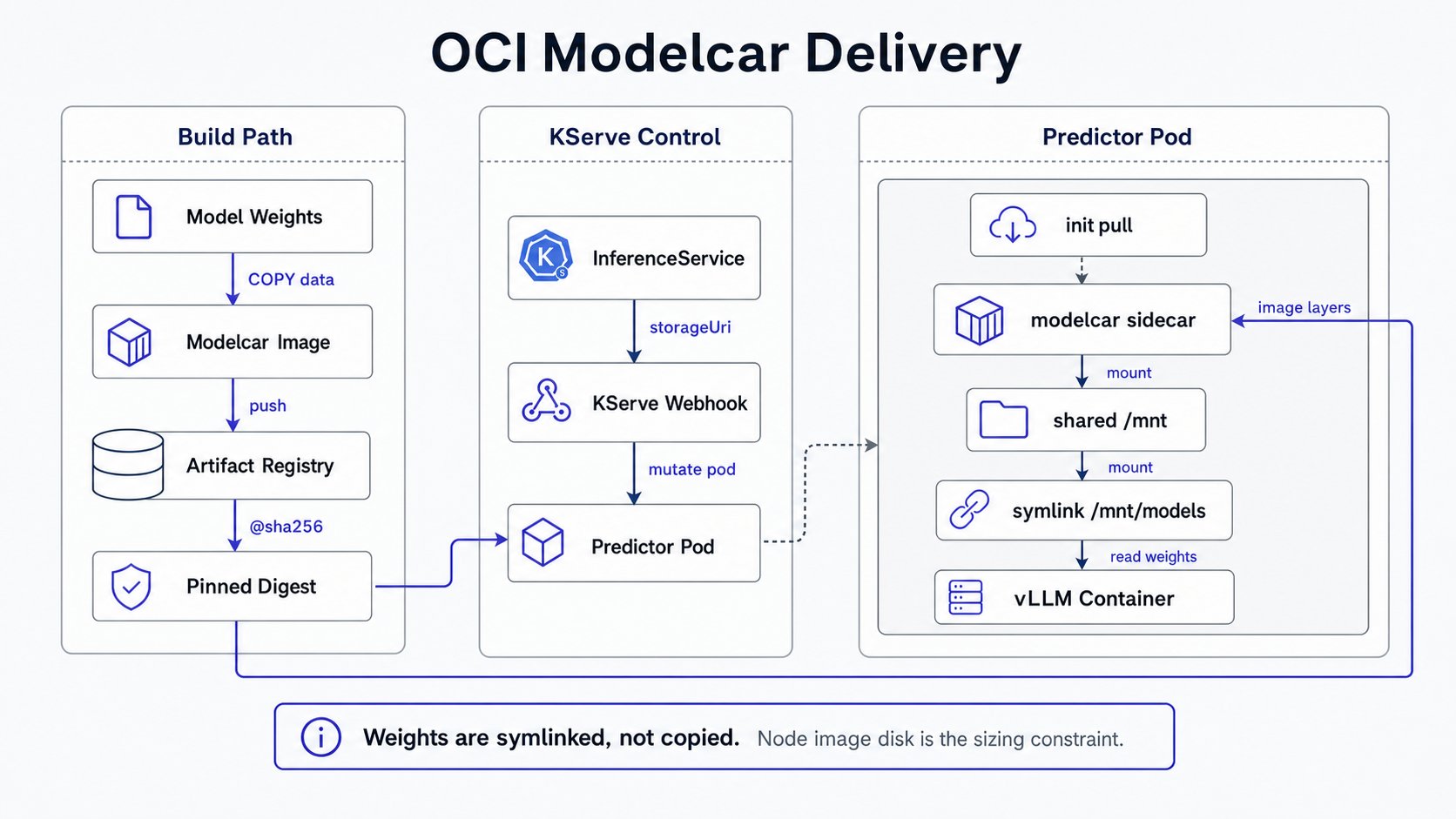

KServe sees predictor.model.storageUri: oci://... and auto-injects into the pod: a modelcar sidecar + a no-op init-container (pre-pulls the image), spec.shareProcessNamespace: true, a shared emptyDir at /mnt, an ln -sf so the weights appear at /mnt/models, and runAsUser=1010. The weights are symlinked, not copied: no 2x disk, the big-model win. vLLM reads --model=/mnt/models. The whole image is pulled to the node’s image-layer disk, so node disk (not emptyDir) is the sizing constraint for large models. OCI modelcar delivery path from model weights to Artifact Registry, KServe webhook mutation, modelcar sidecar, shared mount, and vLLM container

​
1. One-time: Artifact Registry repo + auth

The GKE OpenTofu root creates the Docker Artifact Registry repo and grants the GKE node service account roles/artifactregistry.reader on it:
make tf-apply
Pull auth (modelcar uses image-pull creds, NOT KServe storage creds): the modelcar image is pulled by the kubelet like any container image. For cross-project / non-WI setups set imagePullSecrets on the predictor pod’s ServiceAccount. This differs from s3:///gs:// storage, which use KServe storage-secret credentials.

​
2. Build + push the modelcar, pin the digest

make modelcar-build MODEL=Qwen/Qwen2.5-0.5B-Instruct \
  IMAGE=<region>-docker.pkg.dev/<proj>/<repo>/qwen2.5-0.5b:v1
No local Docker? Use GCP Cloud Build (serving/kserve/modelcar/cloudbuild.yaml) or swap in kaniko/podman; the Dockerfile + data/ layout are tool-agnostic. The build prints the immutable @sha256: digest. Pin it in inferenceservice-modelcar.yaml storageUri (oci://<region>-docker.pkg.dev/<proj>/<repo>/qwen2.5-0.5b@sha256:<digest>). Never a tag/:latest: a digest pins IfNotPresent (node-cached after first pull); a tag forces Always (re-pulls the multi-GB image every pod start, defeating the modelcar caching win). Node disk sizing for big models: the full image (30-70 GB for a real model) lands on the node’s image-layer disk. Size the GPU node boot/image disk accordingly (e.g. >=200 GB pd-balanced) or hit ImageGCFailed / disk-pressure eviction on first pull.

​
3. SMOKE-TEST storageUri placement FIRST (the one unverified item)

The exact field the v0.19 webhook honors to wire /mnt/models for a custom container is the single unverified item; every official example is model+runtime. Verify in a scratch namespace before trusting the committed manifest:
kubectl create ns modelcar-smoke
# copy inferenceservice-modelcar.yaml with namespace: modelcar-smoke + the pinned digest, apply it
kubectl -n modelcar-smoke apply -f /tmp/qwen-oci-smoke.yaml
# inspect the MUTATED pod: confirm the webhook did its job:
POD=$(kubectl -n modelcar-smoke get pod -l serving.kserve.io/inferenceservice=qwen-oci -o name | head -1)
kubectl -n modelcar-smoke get "$POD" -o jsonpath='{.spec.shareProcessNamespace}'; echo   # -> true
kubectl -n modelcar-smoke get "$POD" -o jsonpath='{.spec.initContainers[*].name}'; echo  # modelcar init present
kubectl -n modelcar-smoke get "$POD" -o jsonpath='{.spec.containers[*].name}'; echo       # kserve-container + modelcar sidecar
kubectl -n modelcar-smoke exec "$POD" -c kserve-container -- ls -l /mnt/models            # symlink populated
If /mnt/models is empty / no sidecar injected, the webhook did NOT honor predictor.model.storageUri for the custom container, switch to the annotation/STORAGE_URI mechanism (research §2) and re-test before deploying. Clean up: kubectl delete ns modelcar-smoke.

​
4. Deploy qwen-oci

qwen-oci ships in the kserve-demo Argo app (manual-sync, paid GPU). After pinning the digest and committing:
argocd app sync kserve-demo
kubectl -n kserve get isvc qwen-oci          # wait for Ready

​
5. GPU validate

GW=$(kubectl -n kserve get gateway kserve-ingress-gateway -o jsonpath='{.status.addresses[0].value}')
H=qwen-oci-kserve.example.com
curl -s -H "Host: $H" http://$GW/v1/models                         # -> qwen2.5-0.5b-instruct
curl -s -H "Host: $H" -H 'Content-Type: application/json' http://$GW/v1/chat/completions \
  -d '{"model":"qwen2.5-0.5b-instruct","messages":[{"role":"user","content":"ping"}],"max_tokens":16}'
# -> 200, system_fingerprint vllm-0.23.0
Confirm zero HF egress (offline serving): HF_HUB_OFFLINE=1 + TRANSFORMERS_OFFLINE=1 are set; vLLM must never hit huggingface.co. Spot-check the pod logs for no HF download lines, and (if egress logging is available) confirm no traffic to huggingface.co.

​
6. Scale to zero (idle cost)

kubectl -n kserve annotate isvc qwen-oci serving.kserve.io/stop=true --overwrite   # pause
kubectl -n kserve annotate isvc qwen-oci serving.kserve.io/stop-                    # resume
minReplicas: 0 lets KServe scale the predictor to zero on idle (the GPU node releases → $0 idle). Note: scale-to-zero deletes the node and its node-warm image cache, so the next cold start re-pulls the modelcar: a validation caveat, not an argument against modelcar. The node-warm cache for warm multi-node pools (LocalModelCache) is a deferred production capability.
