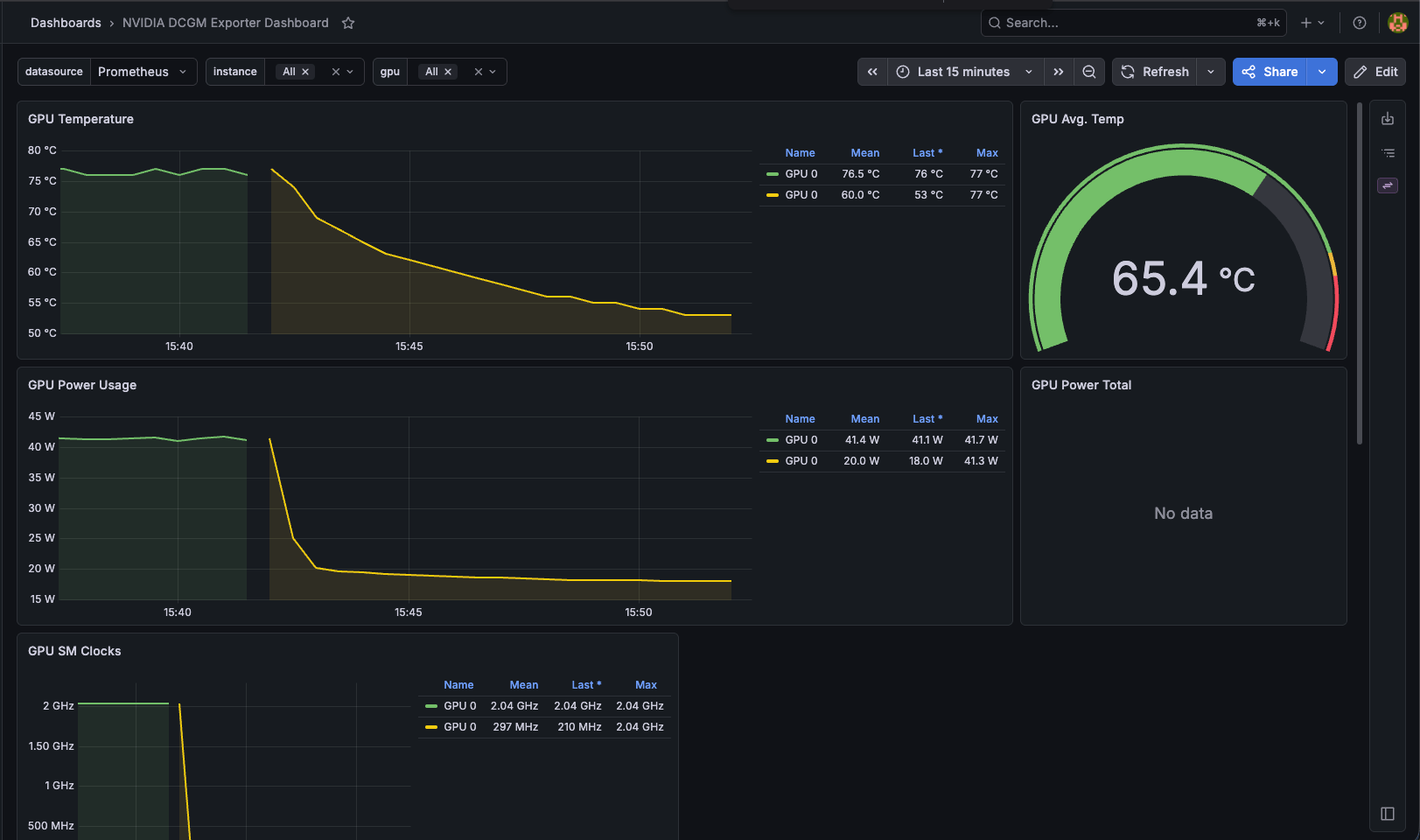

Failure modes hit standing up GPU nodes on GKE, and their fixes. Sections 1-3 cover the self-managed GPU Operator path; on GKE the managed GPU stack avoids them, while off GKE you run the Operator yourself (see the portability concepts). NVIDIA DCGM dashboard showing per-GPU temperature, power draw, and SM clocks The NVIDIA DCGM dashboard: per-GPU temperature, power draw, and SM clocks, for confirming the device is healthy and doing work.

​
1. GPU Operator pods never schedule: “insufficient quota to match these scopes”

Symptom: after the gpu-operator Argo CD app syncs, the operator + NFD Deployments stay at 0/1 with zero pods (not even Pending). Events show:
Warning  FailedCreate  replicaset/gpu-operator-...  Error creating: insufficient quota to
match these scopes: [{PriorityClass In [system-node-critical system-cluster-critical]}]
Cause: GKE restricts the system-node-critical / system-cluster-critical priority classes to namespaces that explicitly grant them via a scoped ResourceQuota (enforced through a cluster-level admission config; there is no visible ResourceQuota to find). The GPU Operator’s components run at system-node-critical, so admission rejects their pods in a fresh namespace. Fix: grant the gpu-operator namespace a ResourceQuota scoped to those priority classes (platform/gpu-operator/prereqs/resourcequota.yaml), synced before the operator (sync-wave 1 < the operator’s wave 2). Pods schedule immediately once it exists. Diagnose:
kubectl -n gpu-operator get events --sort-by=.lastTimestamp | grep -i quota
kubectl -n gpu-operator get deploy gpu-operator -o jsonpath='{.status.conditions[*].message}'

​
2. GPU node never provisions: “GCE quota exceeded”

Symptom: a pod requesting nvidia.com/gpu stays Pending; the autoscaler triggers a scale-up that then fails and gives up (cluster_autoscaler_unhelpable_until: Inf):
Warning  FailedScaleUp  ... GCE quota exceeded. Pod is at risk of not being scheduled.
Cause: GCP GPU quotas default to 0 on new/free-tier projects, and the regional GPU quota is not enough. Two separate quotas gate this:
  • GPUS_ALL_REGIONS (global) gates all GPU usage regardless of region. Default 0 → blocks everything.
  • PREEMPTIBLE_CPUS (regional): Spot/preemptible nodes (e.g. g2-standard-8 = 8 vCPU) count here. Default 0. (On-demand nodes use the regional CPUS quota instead.)
A non-zero regional NVIDIA_L4_GPUS is necessary but not sufficient: GPUS_ALL_REGIONS must also be ≥ the count. Fix: request quota increases (Console → IAM & Admin → Quotas, or the Cloud Console quota page):
  • GPUs (all regions) → ≥ 1
  • Preemptible CPUs in the region → ≥ 8 (for a single g2-standard-8 spot node), or drop --spot and ensure regional CPUs has headroom.
Small increases are often auto-approved within minutes; otherwise up to ~2 days. Diagnose:
# global
gcloud compute project-info describe --format="json(quotas)" | python3 -c "import sys,json;[print(q) for q in json.load(sys.stdin)['quotas'] if q['metric']=='GPUS_ALL_REGIONS']"
# regional
gcloud compute regions describe us-central1 --format="json(quotas)" | python3 -c "import sys,json;[print(q) for q in json.load(sys.stdin)['quotas'] if q['metric'] in ('NVIDIA_L4_GPUS','PREEMPTIBLE_NVIDIA_L4_GPUS','PREEMPTIBLE_CPUS')]"
Note: an L4 only comes on a g2-* machine, and the smallest (g2-standard-4) is already 4 vCPU. With a 4-vCPU spot default pool, a spot L4 needs PREEMPTIBLE_CPUS ≥ 8 region-wide (default-pool 4 + GPU 4). Granting exactly 8 fits only the smallest L4 shape; g2-standard-8 would need 12.

​
3. Self-managed GPU Operator on GKE: driver validates but the nvidia runtime never registers

Symptom: with the GPU Operator (driver.enabled=true) on a GKE Ubuntu node, the driver itself works (nvidia-smi succeeds inside nvidia-driver-daemonset), but nvidia-operator-validator, nvidia-device-plugin-daemonset, nvidia-dcgm-exporter, and gpu-feature-discovery stay in Init / CreateContainerError:
FailedCreatePodSandBox ... unable to get OCI runtime for sandbox ...:
no runtime for "nvidia" is configured
and nvidia.com/gpu is never advertised, so GPU pods stay Pending with Insufficient nvidia.com/gpu. Two distinct causes, in order:
  1. driver-validation watches the wrong directory. hostPaths.driverInstallDir was set to GKE’s managed-driver path /home/kubernetes/bin/nvidia, but with driver.enabled=true the operator installs to the chart default /run/nvidia/driver. The driver-validation init container logs failed to validate the driver on a 5s loop forever. Fix: remove the hostPaths.driverInstallDir override (keep toolkit.installDir on the writable GKE path). This unblocks validation but exposes cause 2.
  2. the container-toolkit cannot configure GKE’s containerd (gpu-operator#1679). The toolkit writes a drop-in to /etc/containerd/conf.d/99-nvidia.toml and SIGHUPs containerd, but GKE has no /etc/containerd/config.toml at the standard path and does not import that drop-in dir, so the nvidia runtime is never registered. driver.enabled=false does not help: the toolkit still runs and still fails.
Resolution: use the GKE-managed GPU stack (gpu-driver-version=default, COS image, GKE’s device plugin), and run dcgm-exporter standalone for metrics. Diagnose:
# is the nvidia runtime registered where kubelet's containerd reads it?
kubectl logs -n gpu-operator -l app=nvidia-container-toolkit-daemonset -c nvidia-container-toolkit-ctr | grep -iE "config|SIGHUP|drop-in"
# does the node advertise the GPU?
kubectl get node -l cloud.google.com/gke-accelerator=nvidia-l4 -o jsonpath='{.items[0].status.allocatable.nvidia\.com/gpu}{"\n"}'

​
4. Own dcgm-exporter crashes on GKE: GKE already runs one (embedded DCGM conflict)

Symptom: the NVIDIA dcgm-exporter Helm chart pod starts then exits 1 immediately on a GKE GPU node (distroless image → only Starting dcgm-exporter then exit status 1), even though the driver libs are mounted and nvidia-smi works. Cause: GKE runs its own dcgm-exporter (DaemonSet in gke-managed-system) with an embedded DCGM engine on every GPU node. A second embedded engine can’t co-attach to the same GPUs, so our exporter dies. (Separate, earlier issue: on GKE COS there’s no nvidia RuntimeClass, so a self-run exporter must mount the host driver /home/kubernetes/bin/nvidia → /usr/local/nvidia, set LD_LIBRARY_PATH=/usr/local/nvidia/lib64, and run privileged, but that only gets you to the embedded-engine conflict above.) Fix: don’t run our own. Scrape GKE’s managed dcgm-exporter into the in-cluster Prometheus with a PodMonitor (platform/dcgm-metrics). GKE’s exporter already emits DCGM_FI_DEV_* with pod→GPU attribution on :9400. On a self-managed / GPU-Operator cluster, run the chart instead. Diagnose:
kubectl get pods -n gke-managed-system          # GKE's dcgm-exporter, one per GPU node
kubectl logs -n gpu-monitoring -l app.kubernetes.io/name=dcgm-exporter   # own exporter: exit 1
