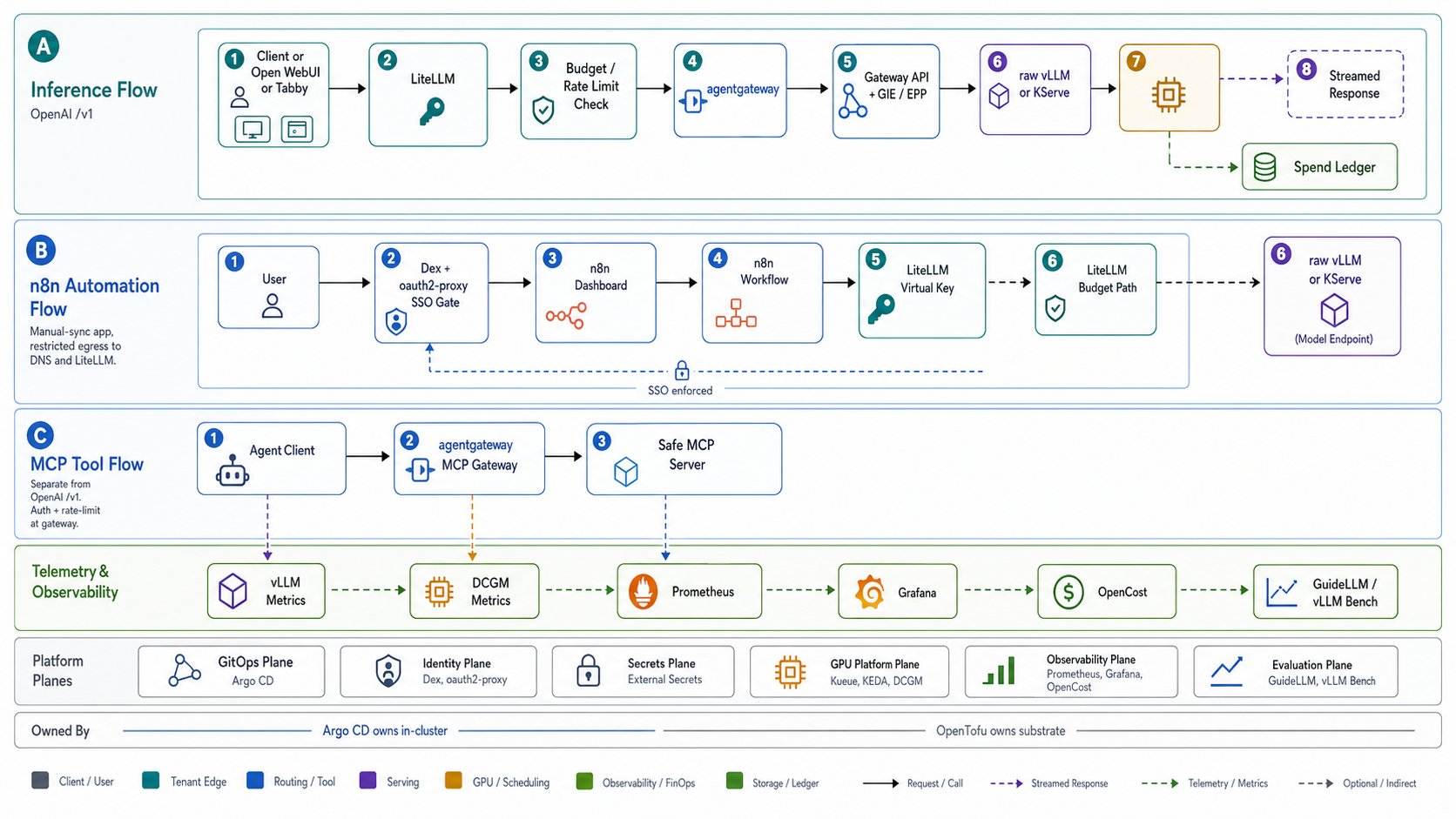

n8n is an optional automation surface. Enabling it creates an Argo CD Application; it does not sync until an operator chooses to bring it up. n8n automation flow showing SSO-gated dashboard access, n8n workflows using a LiteLLM virtual key, separate MCP tool flow, and telemetry

​
Enable

  1. Set features.n8n: true in environments/ai-dev/config.yaml.
  2. Run make resolve-groups.
  3. Run make seed-secrets so n8n-encryption-key exists in the secret backend.
  4. Apply a profile that includes identity, public-edge, llm-gateway, and n8n, then manually sync the n8n Application in Argo CD.
The n8n app uses standalone mode: SQLite on the n8n PVC. Queue mode needs external Postgres and Redis and is intentionally not part of the lab deployment.

​
Access

When the public edge is enabled, n8n is exposed at:
https://n8n.<domain>
make fork-init rewrites the domain for forks. n8n authenticates in two layers. The dashboard route is fail-closed behind Dex through oauth2-proxy before n8n serves any page, so only a Dex-authenticated identity reaches n8n. That edge gate is the access boundary. Underneath it, the Community edition keeps its own owner login: n8n native single sign-on (SAML or OIDC) is a Business and Enterprise feature, and n8n removed the N8N_USER_MANAGEMENT_DISABLED variable in version 1.0, so the built-in login cannot be turned off on the OSS edition. The owner account is a second, instance-local credential behind the edge SSO gate. To skip the interactive owner-account setup screen, pre-provision the instance owner from the environment (n8n v2.17.0 and later): set N8N_INSTANCE_OWNER_MANAGED_BY_ENV=true with N8N_INSTANCE_OWNER_EMAIL and a bcrypt N8N_INSTANCE_OWNER_PASSWORD_HASH (a plaintext password breaks login). Flow the hash through the secret backend and ESO the same way as dex-admin-hash so the owner stays GitOps-managed with no manual setup step.

​
Secrets

make seed-secrets creates:
n8n-encryption-key
ESO projects it into n8n/n8n-core-secrets as N8N_ENCRYPTION_KEY. The same Secret also carries the non-secret host, port, and protocol values because the official chart expects all core settings in one Secret. The in-cluster n8n-key-minter Job creates n8n/n8n-litellm-secrets with a LiteLLM virtual key. That key is exposed to the pod as OPENAI_API_KEY; OPENAI_API_BASE_URL points at the in-cluster LiteLLM /v1 endpoint.

​
Network posture

The n8n main pod is restricted to:
  • ingress from the shared agentgateway data plane
  • egress to cluster DNS
  • egress to LiteLLM on port 4000
This keeps AI calls on the LiteLLM budget path. Add explicit NetworkPolicy before enabling workflows that call other internal or external services.

​
SSO check

Unauthenticated dashboard access should redirect to Dex:
curl -I https://n8n.<domain>
Expected: an HTTP redirect to portal.<domain>/oauth2/start or the Dex login flow. A direct HTTP 200 from n8n is a failed SSO gate.
